Circuit Sample

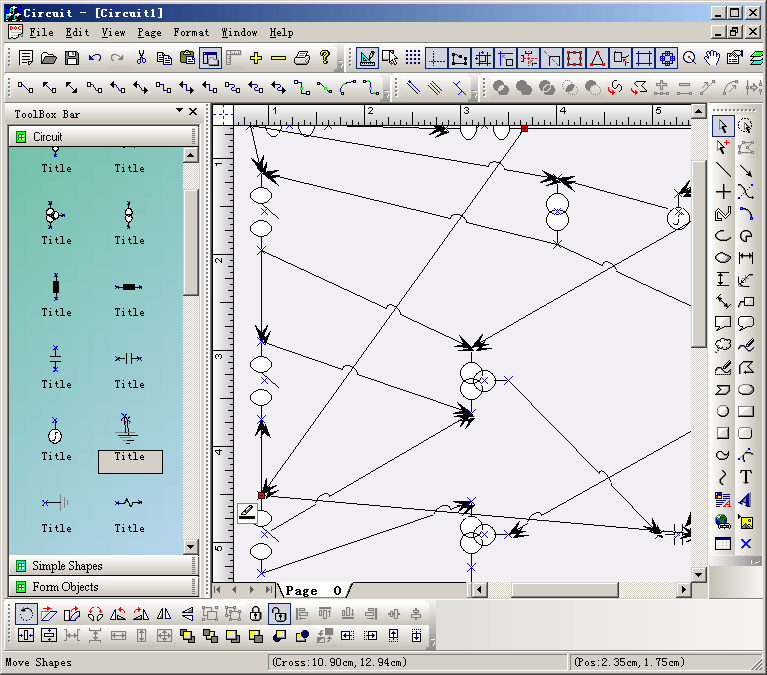

The Circuit sample demonstrates how to create circuit kind application, it demonstrates on how to create composite shapes, create new style custom shape with multiple anchors support, with the latest edition of E-XD++, you can create up - to 5 other new anchors. It also demonstrates many new drawing features like Microsoft Visio 2007.

Steps:

1. Create new class CMyToolBoxBar for new style of toolbox window.

2. Create a new class CMyDoubleLineShape that use CFOPAdvAnchorShape as base class, this new class has one anchors to change the space between these two lines

3. Create a new class CMyIntersectShape that use CFOPAdvAnchorShape as base class, this new class has three anchors.

4. Create a new class CMyThreeLineShape that use CFOPAdvAnchorShape as base class, this new shape has a anchor to change the space between these three lines.

5. Draw new line, call:


void CCircuitView::OnDrawMyline()
{
	// TODO: Add your command handler code here
	m_drawshape = MY_DOUBLELINE;
	SetCurrentDrawingCursor(IDC_FO_DRAW_DIMLINE);
	m_action_state = State_DrawDimLine;
	m_bUpRightMode = FALSE;
}

void CCircuitView::OnUpdateDrawMyline(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here
	BOOL bDesign = GetCurrentModel()->IsDesignMode();
	pCmdUI->Enable(bDesign);

	pCmdUI->SetCheck(m_drawshape == MY_DOUBLELINE);
}

CPoint CCircuitView::CalcNewAnchorPoint(const CPoint &ptStart,const CPoint &ptEnd,const CPoint &ptCompare,const double &dWidth) const
{
	double slopy , cosy , siny;

	// Draw first line.
	slopy = atan2( (double)( ptStart.y - ptEnd.y ),(double)( ptStart.x - ptEnd.x ) );
	cosy = cos( slopy );
	siny = sin( slopy );

	// 下面是相对一个顶点计算的点
	CPoint pt = CPoint(CFODrawHelper::RoundValue((double)((double)ptCompare.x + dWidth * siny )),
		CFODrawHelper::RoundValue((double)((double)ptCompare.y - dWidth * cosy )));

	return pt;
}

// Default dimension line length.
const int fo_DefaultDimLen			= 40;

CPoint CCircuitView::GeneratePoints(const CPoint &ptStart,const CPoint &ptEnd,LPPOINT cCtlPt) const
{

	/////////////////////////////////
	//	    5          6
	//	    |          |
	//	    |     |    |
	//   0--2----------3--1
	//                 |
	//				   |
	//				   4
	////////////////////////////////

	CPoint ptReturn;
	cCtlPt[0] = ptStart;
	cCtlPt[1] = ptEnd;

	CPoint ptCalc = CPoint((ptStart.x + ptEnd.x)/2,(ptStart.y + ptEnd.y)/2);
	cCtlPt[6] = ptCalc;

	CPoint ptCenter = CPoint((ptStart.x + ptCalc.x)/2,(ptStart.y + ptCalc.y)/2);
	cCtlPt[2] = ptCenter;

	ptCenter = CPoint((ptEnd.x + ptCalc.x)/2,(ptEnd.y + ptCalc.y)/2);
	cCtlPt[3] = ptCenter;

	double Par1 = 10;

	CPoint m_ptLineStart,m_ptLineEnd;

	m_ptLineStart = ptStart;
	m_ptLineEnd = ptEnd;

	// Draw first line.
	cCtlPt[6] = CalcNewAnchorPoint(m_ptLineStart,m_ptLineEnd,ptCalc,Par1);
	ptReturn = cCtlPt[2];

	// Draw first line.
	Par1 = fo_DefaultDimLen;
	ptCenter = CPoint((ptStart.x + ptCalc.x)/2,(ptStart.y + ptCalc.y)/2);
	cCtlPt[5] = CalcNewAnchorPoint(m_ptLineStart,m_ptLineEnd,ptCenter,Par1);

	// Draw first line.
	Par1 = -fo_DefaultDimLen;
	ptCenter = CPoint((ptEnd.x + ptCalc.x)/2,(ptEnd.y + ptCalc.y)/2);
	cCtlPt[4] = CalcNewAnchorPoint(m_ptLineStart,m_ptLineEnd,ptCenter,Par1);

	return ptReturn;
}

void CCircuitView::OnDrawTrackDimLine(CPoint ptTrackDev)
{
	if(m_drawshape == MY_DOUBLELINE)
	{
		m_ptMouseDown = ptTrackDev;
		CPoint ptTrack = m_ptMouseDown;
		FODPtoLP(&ptTrack, 1);

		LimitDrawShapeTrackPoint(&m_ptCurrentLog, &ptTrack, 1);
		FOLPtoDP(&ptTrack, 1);

		POINT pptPoints[4];
		pptPoints[0] = m_ptCurrentDevice;
		pptPoints[1] = ptTrack;

		long Par1 = fo_DefaultDimLen;
		// Prepare dc.
		CFOWndDC dc(this,FALSE);
		PrepareTrackLineDC(&dc);

		CPoint m_ptLineStart,m_ptLineEnd;
		double slopy , cosy , siny;

		m_ptLineStart = m_ptCurrentDevice;
		m_ptLineEnd = ptTrack;

		// Draw first line.
		slopy = atan2( (double)( m_ptLineStart.y - m_ptLineEnd.y ),(double)( m_ptLineStart.x - m_ptLineEnd.x ) );
		cosy = cos( slopy );
		siny = sin( slopy );

		CPoint pt;
		pt = CPoint(CFODrawHelper::RoundValue((double)(m_ptLineStart.x + int( Par1 * siny ) )),
			CFODrawHelper::RoundValue((double)(m_ptLineStart.y - int( Par1 * cosy ) )));
		CFODrawHelper::MirrorPointX(pt,m_ptLineStart,m_ptLineEnd);
		pptPoints[2] = pt;

		// Draw end line.
		m_ptLineStart = ptTrack;
		m_ptLineEnd = m_ptCurrentDevice;

		slopy = atan2( (double)( m_ptLineStart.y - m_ptLineEnd.y ),(double)( m_ptLineStart.x - m_ptLineEnd.x ) );
		cosy = cos( slopy );
		siny = sin( slopy );

		pt = CPoint(CFODrawHelper::RoundValue((double)(m_ptLineStart.x + int( Par1 * siny ) )),
			CFODrawHelper::RoundValue((double)(m_ptLineStart.y - int( Par1 * cosy ) )));
		pptPoints[3] = pt;

		dc.MoveTo(pptPoints[0]);
		dc.LineTo(pptPoints[1]);

		dc.MoveTo(pptPoints[2]);
		dc.LineTo(pptPoints[3]);

		// Clear dc.
		ClearTrackLineDC(&dc);
	}
	else if(m_drawshape == MY_INTERSECTLINE)
	{
		m_ptMouseDown = ptTrackDev;
		CPoint ptTrack = m_ptMouseDown;
		FODPtoLP(&ptTrack, 1);

		LimitDrawShapeTrackPoint(&m_ptCurrentLog, &ptTrack, 1);
		FOLPtoDP(&ptTrack, 1);

		POINT pptPoints[7];

		GeneratePoints(m_ptCurrentDevice,ptTrack,pptPoints);

		// Prepare dc.
		CFOWndDC dc(this,FALSE);
		PrepareTrackLineDC(&dc);

		dc.MoveTo(pptPoints[0]);
		dc.LineTo(pptPoints[1]);

		dc.MoveTo(pptPoints[2]);
		dc.LineTo(pptPoints[5]);

		dc.MoveTo(pptPoints[3]);
		dc.LineTo(pptPoints[4]);

		CPoint ptCenter = pptPoints[2];
		int nWidth = (int)(10 / 2);
		CRect rc = CRect(ptCenter.x - nWidth,ptCenter.y - nWidth,ptCenter.x + nWidth,ptCenter.y + nWidth);
		dc.Ellipse(&rc);

		ptCenter = pptPoints[3];
		rc = CRect(ptCenter.x - nWidth,ptCenter.y - nWidth,ptCenter.x + nWidth,ptCenter.y + nWidth);
		dc.Ellipse(&rc);


		// Clear dc.
		ClearTrackLineDC(&dc);
	}
	else if(m_drawshape == MY_THREEINE)
	{
		m_ptMouseDown = ptTrackDev;
		CPoint ptTrack = m_ptMouseDown;
		FODPtoLP(&ptTrack, 1);

		LimitDrawShapeTrackPoint(&m_ptCurrentLog, &ptTrack, 1);
		FOLPtoDP(&ptTrack, 1);

		POINT pptPoints[6];
		pptPoints[0] = m_ptCurrentDevice;
		pptPoints[1] = ptTrack;

		long Par1 = fo_DefaultDimLen;
		// Prepare dc.
		CFOWndDC dc(this,FALSE);
		PrepareTrackLineDC(&dc);

		CPoint m_ptLineStart,m_ptLineEnd;
		double slopy , cosy , siny;

		m_ptLineStart = m_ptCurrentDevice;
		m_ptLineEnd = ptTrack;

		// Draw first line.
		slopy = atan2( (double)( m_ptLineStart.y - m_ptLineEnd.y ),(double)( m_ptLineStart.x - m_ptLineEnd.x ) );
		cosy = cos( slopy );
		siny = sin( slopy );

		CPoint pt;
		pt = CPoint(CFODrawHelper::RoundValue((double)(m_ptLineStart.x + int( Par1 * siny ) )),
			CFODrawHelper::RoundValue((double)(m_ptLineStart.y - int( Par1 * cosy ) )));
		CFODrawHelper::MirrorPointX(pt,m_ptLineStart,m_ptLineEnd);
		pptPoints[2] = pt;

		CPoint ptTemp = pt;
		CFODrawHelper::MirrorPointX(ptTemp,m_ptLineStart,m_ptLineEnd);
		pptPoints[4] = ptTemp;

		// Draw end line.
		m_ptLineStart = ptTrack;
		m_ptLineEnd = m_ptCurrentDevice;

		slopy = atan2( (double)( m_ptLineStart.y - m_ptLineEnd.y ),(double)( m_ptLineStart.x - m_ptLineEnd.x ) );
		cosy = cos( slopy );
		siny = sin( slopy );

		pt = CPoint(CFODrawHelper::RoundValue((double)(m_ptLineStart.x + int( Par1 * siny ) )),
			CFODrawHelper::RoundValue((double)(m_ptLineStart.y - int( Par1 * cosy ) )));
		pptPoints[3] = pt;

		ptTemp = pt;
		CFODrawHelper::MirrorPointX(ptTemp,m_ptLineStart,m_ptLineEnd);
		pptPoints[5] = ptTemp;

		dc.MoveTo(pptPoints[0]);
		dc.LineTo(pptPoints[1]);

		dc.MoveTo(pptPoints[2]);
		dc.LineTo(pptPoints[3]);

		dc.MoveTo(pptPoints[4]);
		dc.LineTo(pptPoints[5]);

		// Clear dc.
		ClearTrackLineDC(&dc);
	}
	else
	{
		CFOPCanvasCore::OnDrawTrackDimLine(ptTrackDev);
	}
}

void CCircuitView::OnDrawMythreeline()
{
	// TODO: Add your command handler code here
	m_drawshape = MY_THREEINE;
	SetCurrentDrawingCursor(IDC_FO_DRAW_DIMLINE);
	m_action_state = State_DrawDimLine;
	m_bUpRightMode = FALSE;
}

void CCircuitView::OnUpdateDrawMythreeline(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here
	BOOL bDesign = GetCurrentModel()->IsDesignMode();
	pCmdUI->Enable(bDesign);

	pCmdUI->SetCheck(m_drawshape == MY_THREEINE);
}

void CCircuitView::OnDrawMyintersectline()
{
	// TODO: Add your command handler code here
	m_drawshape = MY_INTERSECTLINE;
	SetCurrentDrawingCursor(IDC_FO_DRAW_DIMLINE);
	m_action_state = State_DrawDimLine;
	m_bUpRightMode = FALSE;
}

void CCircuitView::OnUpdateDrawMyintersectline(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here
	BOOL bDesign = GetCurrentModel()->IsDesignMode();
	pCmdUI->Enable(bDesign);

	pCmdUI->SetCheck(m_drawshape == MY_INTERSECTLINE);
}
