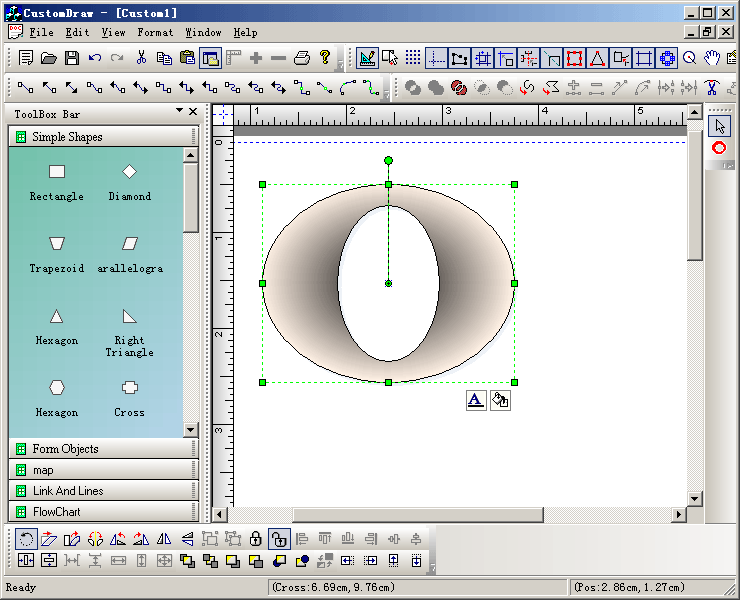

Steps:

1. Add new drawing action flags:

enum my_newaction
{
// Draw pie state.
State_DoubleEllipse = 100,
State_DoubleEllipseStart,
State_DoDoubleEllipse,
State_DoubleEllipseLine1Start,
State_DoDoubleEllipseLine1
};

2. Add the following new methods for drawing:
// Draw Track Pie
virtual void OnDrawTrackDoubleEllipse(CPoint point);

void CCustomDrawView::OnLButtonDown(UINT nFlags, CPoint point)
{
	// TODO: Add your message handler code here and/or call default
	if(GetCurrentModel()->IsDesignMode())
	{
		if(m_action_state == State_DoubleEllipse ||
			m_action_state == State_DoubleEllipseStart ||
			m_action_state == State_DoDoubleEllipse ||
			m_action_state == State_DoubleEllipseLine1Start)
		{
			m_pSelectedHelpLine = NULL;
			CPoint local = point;
			if(m_action_state != State_DoInfront_Shape &&
				m_action_state != State_DoBehind_Shape)
			{
				if(m_pCurHilightShape != NULL)
				{
					CFODrawShapeList lstUpdate;
					lstUpdate.AddTail(m_pCurHilightShape);

					m_pCurHilightShape = NULL;

					UpdateShapes(&lstUpdate);
				}
			}

			m_bResetSelect = FALSE;
			m_ptCurrentDevice = point;
			m_ptCurrentLog = m_ptCurrentDevice;
			FODPtoLP(&m_ptCurrentLog,1);
			if(m_bTabOrder)
			{
				DoChangeTabOrder(local);
				return;
			}

			CPoint ptDev = point;
			CPoint ptLog(ptDev);
			FODPtoLP(&ptLog, 1);

			BOOL bEnableGridSnap = TRUE;
			if(m_bEnableNearest)
			{
				CPoint ptNear;
				if(GetCurrentModel()->PickNearestPoint(m_listSelectComp,ptNear,ptLog,TRUE))
				{
					ptLog = ptNear;
					ptDev = ptLog;
					FOLPtoDP(&ptDev,1);

					bEnableGridSnap = FALSE;
				}
			}

			if(bEnableGridSnap)
			{
				if (GetCurrentModel()->IsGrid())
				{
					ptLog = FindCloseGridPoint(ptLog);
					ptDev = ptLog;
					FOLPtoDP(&ptDev,1);
				}
			}

			m_arPointsPolygon.RemoveAll();
			m_arPointsPolygon.Add(ptLog);

			OnDrawTrackDoubleEllipse(ptDev);

			m_action_state = State_DoubleEllipseStart;
		}
		else if(m_action_state == State_DoDoubleEllipseLine1)
		{
			m_pSelectedHelpLine = NULL;
			CPoint local = point;
			if(m_action_state != State_DoInfront_Shape &&
				m_action_state != State_DoBehind_Shape)
			{
				if(m_pCurHilightShape != NULL)
				{
					CFODrawShapeList lstUpdate;
					lstUpdate.AddTail(m_pCurHilightShape);

					m_pCurHilightShape = NULL;

					UpdateShapes(&lstUpdate);
				}
			}

			m_bResetSelect = FALSE;
			m_ptCurrentDevice = point;
			m_ptCurrentLog = m_ptCurrentDevice;
			FODPtoLP(&m_ptCurrentLog,1);
			if(m_bTabOrder)
			{
				DoChangeTabOrder(local);
				return;
			}
		}
		else
		{
			CFODrawView::OnLButtonDown(nFlags, point);
		}
	}
	else
	{
		CFODrawView::OnLButtonDown(nFlags, point);
	}
}

void CCustomDrawView::OnLButtonUp(UINT nFlags, CPoint point)
{
	// TODO: Add your message handler code here and/or call default
	if(GetCurrentModel()->IsDesignMode())
	{
		if(m_action_state == State_DoubleEllipse ||
			m_action_state == State_DoubleEllipseStart ||
			m_action_state == State_DoDoubleEllipse ||
			m_action_state == State_DoubleEllipseLine1Start ||
			m_action_state == State_DoDoubleEllipseLine1)
		{
			BOOL bTimerKilled = FALSE;
			bTimerKilled = CanvasWnd()->KillTimer(nDeafultAutoScrollItmerID);
			if(bTimerKilled)
			{
				DoUpdateRuler();
				FOPInvalidate(FALSE);
			}

			CRect rcDrawTrack = m_rcLastTrackingRect;
			//	DocToClient(rcDrawTrack);

			if (m_bEnableRulerTrack)
			{
				if (m_bEraseRulerTrackingRect)
				{
					CFOWndDC dc(this, FALSE);
					DrawRulerShapeRect(&dc, rcDrawTrack);
					m_bEraseRulerTrackingRect = FALSE;
				}
			}

			switch(m_action_state)
			{
			case State_DoubleEllipseStart:
				{
					StopMouseCapture();
					m_action_state = State_DoubleEllipse;
				}
				break;

			case State_DoDoubleEllipse:
				{
					CPoint ptDev = point;
					CPoint ptLog(ptDev);
					FODPtoLP(&ptLog,1);

					BOOL bEnableGridSnap = TRUE;
					if(m_bEnableNearest)
					{
						CPoint ptNear;
						if(GetCurrentModel()->PickNearestPoint(m_listSelectComp,ptNear,ptLog,TRUE))
						{
							ptLog = ptNear;
							ptDev = ptLog;
							FOLPtoDP(&ptDev,1);
							bEnableGridSnap = FALSE;
						}
					}

					if(bEnableGridSnap)
					{
						if (GetCurrentModel()->IsGrid() && (nFlags & MK_CONTROL))
						{
							ptLog = FindCloseGridPoint(ptLog);
							ptDev = ptLog;
							FOLPtoDP(&ptDev,1);
						}
					}

					OnDrawTrackDoubleEllipse(m_ptMouseDown);
					OnDrawTrackGluespot(m_ptSaveGlue);

					if ((nFlags & MK_SHIFT) || m_bUpRightMode)
					{
						CPoint ptRef = m_arPointsPolygon.GetAt(m_arPointsPolygon.GetSize()-1);
						FOLPtoDP(&ptRef, 1);
						OffsetSamePoint(&ptDev);
						ptLog = ptDev;
						FODPtoLP(&ptLog, 1);
					}

					m_arPointsPolygon.Add(ptLog);
					int nCount = m_arPointsPolygon.GetSize();
					m_action_state = State_DoubleEllipseLine1Start;

				}
				break;

			case State_DoDoubleEllipseLine1:
				{
					CPoint ptDev = point;

					CPoint ptTrack = ptDev;
					FODPtoLP(&ptTrack, 1);

					LimitDrawShapeTrackPoint(&m_ptCurrentLog, &ptTrack, 1);

					FOLPtoDP(&ptTrack, 1);

					StopMouseCapture();

					OnDrawTrackDoubleEllipse(m_ptMouseDown);
					OnDrawTrackGluespot(m_ptSaveGlue);

					if ((nFlags & MK_SHIFT) || m_bUpRightMode)
						MakeUpRight(&m_ptCurrentDevice, &ptDev);

					POINT pptPoint[2];
					pptPoint[0] = m_ptCurrentLog;
					pptPoint[1] = ptDev;
					FODPtoLP(&pptPoint[1], 1);

					BOOL bEnableGridSnap = TRUE;
					if(m_bEnableNearest)
					{
						CPoint ptx = pptPoint[1];
						CPoint ptNear;
						if(GetCurrentModel()->PickNearestPoint(m_listSelectComp,ptNear,ptx,TRUE))
						{
							pptPoint[1] = ptNear;

							bEnableGridSnap = FALSE;
						}
					}

					if(bEnableGridSnap)
					{
						if (GetCurrentModel()->IsGrid())
						{
							pptPoint[1] = FindCloseGridPoint(pptPoint[1]);
						}
					}

					CPoint ptTemp1 = CPoint(m_arPointsPolygon[0]);
					CPoint ptTemp2 = CPoint(m_arPointsPolygon[1]);
					CPoint ptTemp3 = pptPoint[1];

					CRect rcCreate(ptTemp1, ptTemp2);
					rcCreate.NormalizeRect();

					if(m_b1stPointAsCenter)
					{
						if(ptTemp1.x < ptTemp2.x)
						{
							rcCreate.left += rcCreate.left - rcCreate.right;
						}
						else
						{
							rcCreate.right += rcCreate.right - rcCreate.left;
						}

						if(ptTemp1.y < ptTemp2.y)
						{
							rcCreate.top += rcCreate.top - rcCreate.bottom;
						}
						else
						{
							rcCreate.bottom += rcCreate.bottom - rcCreate.top;
						}
					}

					CRect rcEllipse = CRect(ptTemp1,ptTemp2);

					CPoint ptCenter = rcEllipse.CenterPoint();

					int nWidth2 =(int)( rcEllipse.Width() / 2.0);
					int nHeight2 = (int)(rcEllipse.Height() / 2.0);

					int xDis = abs(ptTemp3.x - ptCenter.x);
					int yDis = abs(ptTemp3.y - ptCenter.y);
					if(xDis > nWidth2)
					{
						xDis = nWidth2 -2;
					}

					if(yDis > nHeight2)
					{
						yDis = nHeight2 -2;
					}

					CRect rcNew = rcEllipse;
					rcNew.DeflateRect(nWidth2 - xDis,nHeight2 - yDis,nWidth2 - xDis,nHeight2 - yDis);

					CExtDataModel *pModel = (CExtDataModel *)GetCurrentModel();
					pModel->AddDoubleEllipseShape(m_drawshape,rcEllipse,rcNew);

					if(gfxData.IsContinueEnableDrawing())
					{
						m_action_state = State_DoubleEllipse;
					}
					else
					{
						m_bUpRightMode = FALSE;
						m_drawshape = FO_COMP_NONE;
						ResetToSelectMode();
						FOSetSystemCursor(IDC_ARROW);
					}
				}
				break;
			}
		}
		else
		{
			CFODrawView::OnLButtonUp(nFlags, point);
		}
	}
	else
	{
		CFODrawView::OnLButtonUp(nFlags, point);
	}
}

void CCustomDrawView::OnMouseMove(UINT nFlags, CPoint point)
{
	// TODO: Add your message handler code here and/or call default
	CPoint local = point;
	if(GetCurrentModel()->IsDesignMode())
	{
		if(m_action_state == State_DoubleEllipse ||
			m_action_state == State_DoubleEllipseStart ||
			m_action_state == State_DoDoubleEllipse ||
			m_action_state == State_DoubleEllipseLine1Start ||
			m_action_state == State_DoDoubleEllipseLine1)
		{
			DoDrawRulerMousePos(point);

			if(m_bRulerUpdate)
			{
				FOPInvalidate(FALSE);
				m_bRulerUpdate = FALSE;
			}

			if(m_ptMouseMoveEnd == point)
			{
				return;
			}

			m_ptMouseMoveEnd = point;
			BOOL bMoveScroll = FALSE;

			switch(m_action_state)
			{
			case State_DoubleEllipse:
				{
					CPoint ptDev = point;
					CPoint ptLog(ptDev);
					FODPtoLP(&ptLog,1);

					if(m_bEnableNearest)
					{
						CPoint ptNear;
						if(GetCurrentModel()->PickNearestPoint(m_listSelectComp,ptNear,ptLog,TRUE))
						{
							FOSetCursor(IDC_FO_CURSOR_ANCHOR);
						}
						else
						{
							FOSetCursor(m_nCurrentCursor);
						}
					}
					else
					{
						FOSetCursor(m_nCurrentCursor);
					}

				}
				break;

			case State_DoubleEllipseStart:
				{
					LimitDrawShapeTrackPoint(&m_ptCurrentLog, &m_ptCurrentLog, 1);
					FODPtoLP(&m_ptCurrentDevice, 1);
					LimitDrawShapeTrackPoint(&m_ptCurrentLog, &m_ptCurrentDevice, 1);
					FOLPtoDP(&m_ptCurrentDevice, 1);

					BOOL bEnableGridSnap = TRUE;
					if(m_bEnableNearest)
					{
						CPoint ptNear;
						if(GetCurrentModel()->PickNearestPoint(m_listSelectComp,ptNear,m_ptCurrentLog,TRUE))
						{
							m_ptCurrentLog = ptNear;
							m_ptCurrentDevice = m_ptCurrentLog;
							FOLPtoDP(&m_ptCurrentDevice, 1);
							bEnableGridSnap = FALSE;
						}
					}

					if(bEnableGridSnap)
					{
						if (GetCurrentModel()->IsGrid())
						{
							m_ptCurrentLog = FindCloseGridPoint(m_ptCurrentLog);
							m_ptCurrentDevice = m_ptCurrentLog;
							FOLPtoDP(&m_ptCurrentDevice, 1);
						}
					}

					OnDrawTrackGluespot(m_ptSaveGlue);

					PrepareMouseCapture();
					OnDrawTrackDoubleEllipse(m_ptCurrentDevice);
					m_action_state = State_DoDoubleEllipse;
				}

			case State_DoDoubleEllipse:
				{
					CPoint ptDev = point;
					CPoint ptLog(ptDev);
					FODPtoLP(&ptLog,1);

					BOOL bEnableGridSnap = TRUE;
					if(m_bEnableNearest)
					{
						CPoint ptNear;
						if(GetCurrentModel()->PickNearestPoint(m_listSelectComp,ptNear,ptLog,TRUE))
						{
							ptLog = ptNear;
							ptDev = ptLog;
							FOLPtoDP(&ptDev,1);
							FOSetCursor(IDC_FO_CURSOR_ANCHOR);

							if(m_ptSaveGlue != ptNear)
							{
								OnDrawTrackGluespot(m_ptSaveGlue);
								OnDrawTrackGluespot(ptNear);
								m_ptSaveGlue = ptNear;
							}

							bEnableGridSnap = FALSE;
						}
						else
						{
							FOSetCursor(m_nCurrentCursor);
						}
					}
					else
					{
						FOSetCursor(m_nCurrentCursor);
					}

					if(bEnableGridSnap)
					{
						if (GetCurrentModel()->IsGrid() && (nFlags & MK_CONTROL))
						{
							ptLog = FindCloseGridPoint(ptLog);
							ptDev = ptLog;
							FOLPtoDP(&ptDev,1);
						}
					}

					OnDrawTrackDoubleEllipse(m_ptMouseDown);

					if ((nFlags & MK_SHIFT) || m_bUpRightMode)
					{
						OffsetSamePoint(&ptDev);
					}

					OnDrawTrackDoubleEllipse(ptDev);

					CPoint ptMouse = point;
					FODPtoLP(&ptMouse,1);
					ChangeMousePosString(ptMouse.x,ptMouse.y);

					bMoveScroll = TRUE;
				}
				break;

			case State_DoubleEllipseLine1Start:
				{
					PrepareMouseCapture();

					BOOL bEnableGridSnap = TRUE;
					if(m_bEnableNearest)
					{
						CPoint ptNear;
						if(GetCurrentModel()->PickNearestPoint(m_listSelectComp,ptNear,m_ptCurrentLog,TRUE))
						{
							m_ptCurrentLog = ptNear;
							bEnableGridSnap = FALSE;
						}
					}

					if(bEnableGridSnap)
					{
						if (GetCurrentModel()->IsGrid())
						{
							m_ptCurrentLog = FindCloseGridPoint(m_ptCurrentLog);
						}
					}

					LimitDrawShapeTrackPoint(&m_ptCurrentLog, &m_ptCurrentLog, 1);

					OnDrawTrackGluespot(m_ptSaveGlue);

					m_ptCurrentDevice = m_ptCurrentLog;
					FOLPtoDP(&m_ptCurrentDevice,1);
					OnDrawTrackDoubleEllipse(m_ptCurrentDevice);
					m_action_state = State_DoDoubleEllipseLine1;
				}

			case State_DoDoubleEllipseLine1:
				{
					CPoint ptDev = point;
					CPoint ptLog(ptDev);
					FODPtoLP(&ptLog,1);

					BOOL bEnableGridSnap = TRUE;
					if(m_bEnableNearest)
					{
						CPoint ptNear;
						if(GetCurrentModel()->PickNearestPoint(m_listSelectComp,ptNear,ptLog,TRUE))
						{
							ptLog = ptNear;
							ptDev = ptLog;
							FOLPtoDP(&ptDev,1);
							FOSetCursor(IDC_FO_CURSOR_ANCHOR);

							if(m_ptSaveGlue != ptNear)
							{
								OnDrawTrackGluespot(m_ptSaveGlue);
								OnDrawTrackGluespot(ptNear);
								m_ptSaveGlue = ptNear;
							}

							bEnableGridSnap = FALSE;
						}
						else
						{
							FOSetCursor(m_nCurrentCursor);
						}
					}
					else
					{
						FOSetCursor(m_nCurrentCursor);
					}

					if(bEnableGridSnap)
					{
						if (GetCurrentModel()->IsGrid() && (nFlags & MK_CONTROL))
						{
							ptLog = FindCloseGridPoint(ptLog);
							ptDev = ptLog;
							FOLPtoDP(&ptDev,1);
						}
					}

					OnDrawTrackDoubleEllipse(m_ptMouseDown);

					if ((nFlags & MK_SHIFT) || m_bUpRightMode)
					{
						CPoint ptRef = m_arPointsPolygon.GetAt(m_arPointsPolygon.GetSize()-1);
						FOLPtoDP(&ptRef, 1);
						MakeUpRight(&ptRef, &ptDev);
					}

					OnDrawTrackDoubleEllipse(ptDev);

					CPoint ptMouse = point;
					FODPtoLP(&ptMouse,1);
					ChangeMousePosString(ptMouse.x,ptMouse.y);

					bMoveScroll = TRUE;
				}
				break;

			}
		}
		else
		{
			CFODrawView::OnMouseMove(nFlags, point);
		}

	}
	else
	{
		CFODrawView::OnMouseMove(nFlags, point);
	}
}

void CCustomDrawView::OnDrawTrackDoubleEllipse(CPoint ptTrackDev)
{
	m_ptMouseDown = ptTrackDev;

	CPoint ptTrack = m_ptMouseDown;
	FODPtoLP(&ptTrack, 1);
	LimitDrawShapeTrackPoint(&m_ptCurrentLog, &ptTrack, 1);
	LimitDrawShapeTrackPoint(&m_ptCurrentLog, &(m_arPointsPolygon[(m_arPointsPolygon.GetSize()-1)]), 1);
	FOLPtoDP(&ptTrack, 1);

	// Prepare dc.
	CFOWndDC dc(this,FALSE);
	PrepareTrackLineDC(&dc);

	int nCount = m_arPointsPolygon.GetSize();
	if (nCount > 0)
	{
		switch(nCount)
		{
		case 1:
			{
				CPoint ptFirst = m_arPointsPolygon.GetAt(0);
				FOLPtoDP(&ptFirst, 1);

				CPoint ptSecond = ptTrack;
				FOPRect rcEllipse(ptFirst, ptSecond);
				rcEllipse.NormalizeRect();
				rcEllipse.right++;
				rcEllipse.bottom++;

				if(m_b1stPointAsCenter)
				{
					if(ptFirst.x < ptSecond.x)
					{
						rcEllipse.left += rcEllipse.left - rcEllipse.right;
					}
					else
					{
						rcEllipse.right += rcEllipse.right - rcEllipse.left;
					}

					if(ptFirst.y < ptSecond.y)
					{
						rcEllipse.top += rcEllipse.top - rcEllipse.bottom;
					}
					else
					{
						rcEllipse.bottom += rcEllipse.bottom - rcEllipse.top;
					}
				}

				dc.Ellipse(rcEllipse);
			}
			break;

		case 2:
			{
				CPoint ptFirst = m_arPointsPolygon.GetAt(0);
				FOLPtoDP(&ptFirst, 1);

				CPoint ptSecond = ptTrack;
				CPoint pt = m_arPointsPolygon.GetAt(1);
				FOLPtoDP(&pt, 1);

				ptSecond = pt;
				FOPRect rcEllipse(ptFirst, ptSecond);
				rcEllipse.NormalizeRect();
				rcEllipse.right++;
				rcEllipse.bottom++;

				if(m_b1stPointAsCenter)
				{
					if(ptFirst.x < ptSecond.x)
					{
						rcEllipse.left += rcEllipse.left - rcEllipse.right;
					}
					else
					{
						rcEllipse.right += rcEllipse.right - rcEllipse.left;
					}

					if(ptFirst.y < ptSecond.y)
					{
						rcEllipse.top += rcEllipse.top - rcEllipse.bottom;
					}
					else
					{
						rcEllipse.bottom += rcEllipse.bottom - rcEllipse.top;
					}
				}
				dc.Ellipse(rcEllipse);

				CPoint ptCenter = rcEllipse.CenterPoint();

				int nWidth2 =(int)( rcEllipse.Width() / 2.0);
				int nHeight2 = (int)(rcEllipse.Height() / 2.0);

				int xDis = abs(ptTrack.x - ptCenter.x);
				int yDis = abs(ptTrack.y - ptCenter.y);
				if(xDis > nWidth2)
				{
					xDis = nWidth2 -2;
				}

				if(yDis > nHeight2)
				{
					yDis = nHeight2 -2;
				}

				CRect rcNew = rcEllipse;
				rcNew.DeflateRect(nWidth2 - xDis,nHeight2 - yDis,nWidth2 - xDis,nHeight2 - yDis);

				dc.Ellipse(rcNew);
			}
			break;
		}

	}
	// Clear dc.
	ClearTrackLineDC(&dc);
}

void CCustomDrawView::OnDrawTool1()
{
	// TODO: Add your command handler code here
	m_drawshape = FO_COMP_PIE;
	SetCurrentDrawingCursor(IDC_FO_DRAW_PIE);
	m_action_state = State_DoubleEllipse;
	m_bUpRightMode = FALSE;
}

void CCustomDrawView::OnUpdateDrawTool1(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here
	BOOL bDesign = GetCurrentModel()->IsDesignMode();
	pCmdUI->Enable(bDesign);
	if(bDesign)
	{
		pCmdUI->SetCheck(m_drawshape == FO_COMP_PIE);
	}
}
