E-XD++ Visulization Graphics Toolkit is the best toolkit for building any electric power Softwares, as below:

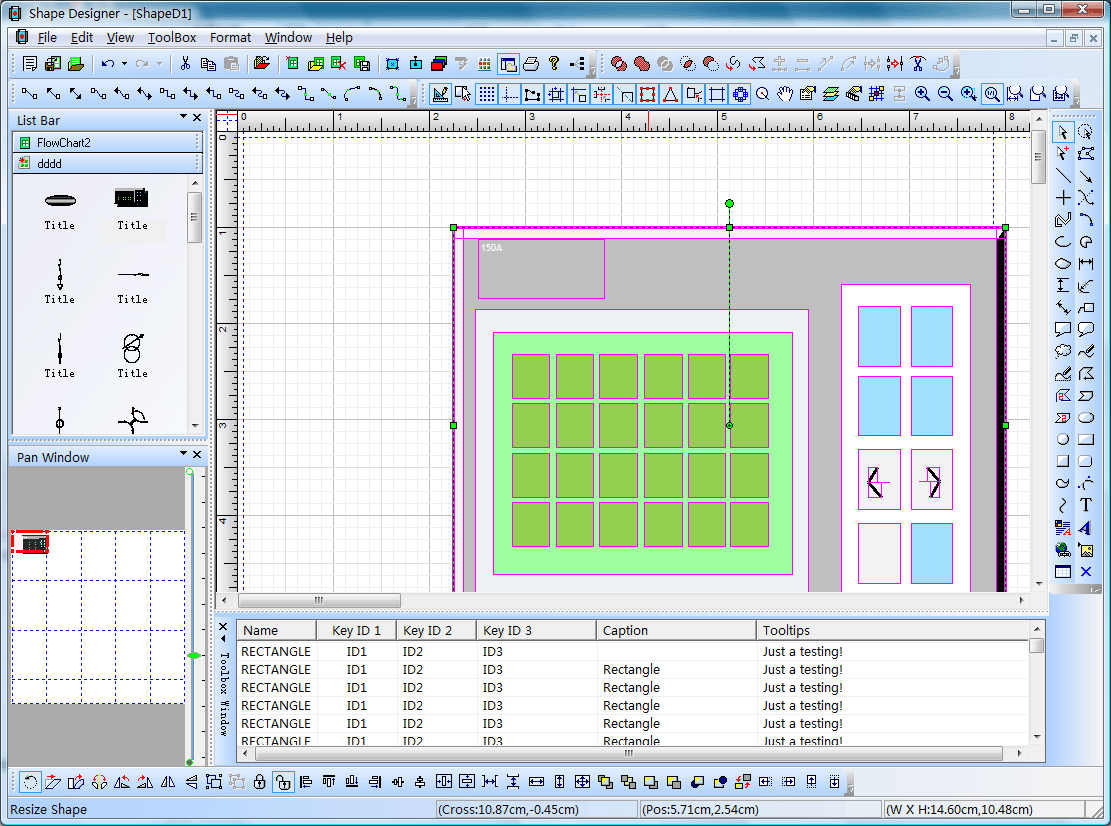

1. Design the electric power Software symbols with shapedesigner：

With E-XD++ full edition, there is a shapedesigner application shipped, with this diagramming tool, you can use many advance features to build any kind of HMI Software symbols, as below：

When one composite symbol is designed, just use Copy/Paste to place it within the toolbox window at left side. These HMI Symbols will be ready for design HMI Screen in future.

2. Design HMI Graphics Software Screen：

With E-XD++ full edition, there is also a ready to use HMI Screen design tool shipped, with this tool, you can use any symbols within the toolbox window at left side to create any screen as you want, just drag and drop, very simple and easy：

If you want to identify any shape on the screen, just use the following dialog to define some key value. There are three key values that can be used to do this work, as below:

We change it's key value 1 to K2.

After one HMI Software Screen is finished, you can save it to a xdg file. You can design as many screen as you want.

3. Building your HMI Software：

With full edition of E-XD++ Visualization Component, there is an appwizard that will help you building a base framework of HMI Software without written a line of codes, after the base framework of your application is finished, you can import any XDG files into your application, (Please remember the resource type must be XDGRes), to load a HMI Screen just call the following codes, it is very easy：

LoadXdgFromResource(IDR_MAIN, _T("XdgRes"), FALSE);

In fact, this line of code can be called at any place if you want to load any new screen at any time.

4. Update the screen with data：

Mostly we can use the WM_TIMER of CWnd to recieve the data and refresh the HMI Screen, if you want to update only one shape, just call UpdateControl of this shape, but if you want to update a list of shapes one time, we recommend you to call UpdateShapes, this will works more effective. If you want to handle the click event, you can DoButtonClickEvent to do that.

That's all, below is the running - time mode of this sample, this sample has three XDG hmi screen, click any item to switch to a new screen.

1. Load screen:

void CElectricDemoView::OnInitialUpdate()
{
SetCurrentModel(GetDocument()->m_pDataModel);
CFODrawView::OnInitialUpdate();
LoadXdgFromResource(IDR_XDGRES_MAIN, _T("XdgRes"), FALSE);
// m_bMain = TRUE;
GetCurrentModel()->SetDesignMode(FALSE);
SetTimer(ID_TIMER_ID, 200, NULL);
pCurShape = NULL;//GetCurrentModel()->FindShapeWithKey1(_T("E1"));
}


2. Do click action:

void CElectricDemoView::OnLButtonUp(UINT nFlags, CPoint point)
{
// TODO: Add your message handler code here and/or call default

CFODrawView::OnLButtonUp(nFlags, point);

pCurShape = NULL;
CPoint local = point;
FODPtoLP(&local);
CFODrawShape *pShape = (CFODrawShape *)GetCurrentModel()->HitTest(local);
CString str;
if(pShape != NULL)
{
// Add your code below
m_pCurRunModelHitShape = NULL;
m_pCurRunModelMoveInShape = NULL;
// Override this method to handle your own click event.
CString str = pShape->GetKeyId1();
if(str == _T("C1"))
{
LoadXdgFromResource(IDR_XDGRES_VOL1, _T("XdgRes"), FALSE);
}
else if(str == _T("C2"))
{
LoadXdgFromResource(IDR_XDGRES_VOL2, _T("XdgRes"), FALSE);
}
else if (str == _T("C3"))
{
LoadXdgFromResource(IDR_XDGRES_VOL3, _T("XdgRes"), FALSE);
}
else if (str == _T("C4"))
{
LoadXdgFromResource(IDR_XDGRES_VOL3, _T("XdgRes"), FALSE);
}
else if (str == _T("C5"))
{
LoadXdgFromResource(IDR_XDGRES_VOL1, _T("XdgRes"), FALSE);
}
else if (str == _T("C6"))
{
LoadXdgFromResource(IDR_XDGRES_MAIN, _T("XdgRes"), FALSE);
}
m_pCurRunModelHitShape = NULL;
m_pCurRunModelMoveInShape = NULL;
GetCurrentModel()->SetDesignMode(FALSE);
pCurShape = GetCurrentModel()->FindShapeWithKey1(_T("E1"));
}
}


3. Recieve data with timer:

int num[] = {20, 30, 15, 18, 8, 12, 6, 33, 25, 60 };
void CElectricDemoView::OnTimer(UINT nIDEvent)
{
// TODO: Add your message handler code here and/or call default
if(nIDEvent == ID_TIMER_ID)
{
int xx = rand() % 10;
int cur = num[xx];
if(pCurShape != NULL)
{
CString strText;
strText.Format(_T("%u KV"), cur);
pCurShape->SetObjectCaption(strText);
pCurShape->UpdateControl();
}
}
else
{
CFODrawView::OnTimer(nIDEvent);
}
}
