Steps:
// Line object
struct FOP_LINK_DATA
{
CString startid;
CString endid;
};

CFODrawShape *CLayoutPathView::FindShapeWithValue(const CString &strValue)
{
int nCount = GetCurrentModel()->GetShapes()->GetCount();
for(int x = 0; x < nCount; x++)
{
CFODrawShape *pShape = (CFODrawShape *)GetCurrentModel()->GetShapes()->GetObject(x);
if(pShape->GetObjectName() == strValue)
{
return pShape;
}
}

return NULL;
}

CFODrawShape *CLayoutPathView::GetNode(const CPoint &ptStart, const CString &strNode)
{
CFORoundRectShape *pRect = new CFORoundRectShape;
pRect->AddRef();
CRect rc(ptStart, CSize(200, 100));
pRect->Create(rc);
pRect->SetObjectCaption(strNode);
pRect->SetObjectName(strNode);
pRect->SetShowLabelAtFirst(TRUE);
pRect->SetMultiLine(TRUE);
pRect->AllowTextWrap(TRUE);
pRect->SetPointSize(10);
pRect->SetBrushType(1);
pRect->SetLineColor(RGB(0,123,0));
pRect->SetLineWidth(2);
pRect->SetWeight(700);
pRect->SetFontColor(RGB(0,128,255));

return pRect;
}

CFOLinkShape *CLayoutPathView::AddLinkShapeNoUndo(CFODrawPortsShape *pFirst,CFODrawPortsShape *pSecond,
  const int &nLinkType, const int &nArrowType)
{
CFOPortShape *pStart = pFirst->GetCenterPort();
CFOPortShape *pEnd = pSecond->GetCenterPort();

if(pStart == NULL || pEnd == NULL)
{
return NULL;
}

CFOLinkShape * pLinkComp = NULL;


switch(nLinkType)
{
case FO_COMP_LINK: //CFOLinkShape
{
pLinkComp = new CFOLinkShape;
}
break;

case FOP_COMP_TURNCORNERLINK:
{
pLinkComp = new CFOTurnCornerLinkShape;
}
break;

case FOP_ROUND_TURNCORNER_LINKSHAPE:
{
pLinkComp = new CFORoundTurnCornerLinkShape;
}
break;

case FOP_COMP_BREAKCENTERLINK:
{
pLinkComp = new CFOPBreakCenterLinkShape;
}
break;

case FO_COMP_UPRIGHTLINK://CFOUpRightLinkShape
{
pLinkComp = new CFOUpRightLinkShape;
}
break;

case FOP_ROUND_UPRIGHT_LINKSHAPE://CFOPRoundUpRightLinkShape
{
pLinkComp = new CFOPRoundUpRightLinkShape;
}
break;

case FO_COMP_CORNERLINK://CFOCornerLinkShape
{
pLinkComp = new CFOCornerLinkShape;
}
break;

case FO_COMP_EXT_CORNERLINK://CFOPExtCornerLinkShape
{
pLinkComp = new CFOPExtCornerLinkShape;
}
break;

case FO_COMP_BEZIERLINK://CFOBezierLinkShape
{
pLinkComp = new CFOBezierLinkShape;
}
break;

case FOP_NEW_SINGLEARROW_LINKSHAPE://CFOPNewSingleArrowLinkShape
{
pLinkComp = new CFOPNewSingleArrowLinkShape;
}
break;

case FOP_NEW_REVERSE_SINGLEARROW_LINKSHAPE://CFOPNewReverseSingleArrowLinkShape
{
pLinkComp = new CFOPNewReverseSingleArrowLinkShape;
}
break;

case FOP_NEW_DOUBLEARROW_LINKSHAPE://CFOPNewDoubleArrowLinkShape
{
pLinkComp = new CFOPNewDoubleArrowLinkShape;
}
break;

case FOP_NEW_SIMPLE_LINKSHAPE:
{
pLinkComp = new CFOPNewSimpleLinkShape;

}
break;

case FOP_NEW_LINEAR_LINKSHAPE://CFOPNewLinearLinkShape
{
pLinkComp = new CFOPNewLinearLinkShape;
}
break;

case FOP_NEW_CURVE_LINKSHAPE://CFOPNewCurveLinkShape
{
pLinkComp = new CFOPNewCurveLinkShape;
}
break;

case FOP_NEW_COMM_LINKSHAPE://CFOPCommLinkShape
{
pLinkComp = new CFOPCommLinkShape;
}
break;

case FOP_COMP_EXTLINKSHAPE:
{
pLinkComp = new CFOPExtLinkShape;
}
break;

default:
{
pLinkComp = new CFOLinkShape;
}
break;
}
pLinkComp->AddRef();
CPoint ptPoints[2];
ptPoints[0] = pStart->GetLinkPoint();
ptPoints[1] = pEnd->GetLinkPoint();
pLinkComp->Create(ptPoints,2);

pLinkComp->SetFromPort(pStart);
pLinkComp->SetToPort(pEnd);

pLinkComp->SetLineWidth(2);
pLinkComp->SetShadow(FALSE);
pLinkComp->SetLineColor(RGB(0,0,51));

pStart->AddLinkShape(pLinkComp);
pEnd->AddLinkShape(pLinkComp);

// Set arrow type.
int nType = nArrowType;
pLinkComp->SetEndArrowType(nType);
GetCurrentModel()->AddChildAtTail(pLinkComp);
pLinkComp->UpdateComp();
pLinkComp->RelayoutPoints();
pLinkComp->Release();

return pLinkComp;
}

void CLayoutPathView::OnFoAddNewpage()
{
// TODO: Add your command handler code here
CExtDataModel *pDataModel = (CExtDataModel *)GetCurrentModel();
if (NULL == pDataModel)
return;

OnFOPEditClearAll();

AfxGetApp()->BeginWaitCursor();
// TODO: Add your command handler code here
CFODrawShapeSet setNodes;

CString strXMLFile;
CString strPathX = AfxGetApp()->m_pszHelpFilePath;
strPathX = strPathX.Left(strPathX.ReverseFind('\\'));
CString strOtherFile;
strXMLFile = strPathX+_T("\\data.xml");
CArray<FOP_LINK_DATA,FOP_LINK_DATA> m_arLinks;
CXDXml xml;
if (TRUE == xml.Load(strXMLFile))
{
BOOL bFirst = TRUE;
int nOffset = 20;
CPoint ptStart = CPoint(20,20);
CFODrawShape *pFirst = NULL;
CXDXmlNode xmlNode2 = xml.GetNode(_T("graph"));
CXDXmlNode xmlNode = xmlNode2.GetNodeList(_T("b"));
for (int i = 0; i<xmlNode.GetNodeListSize(); i++)
{
CXDNamedNode nameNode = xmlNode.GetNamedNode();
CString strName = nameNode.GetNodeText("w");
CString strStart = nameNode.GetNodeText("l");

CFODrawShape *pFirst = FindShapeWithValue(strName);
if(pFirst == NULL)
{
pFirst = GetNode(ptStart, strName);
GetCurrentModel()->GetShapes()->AddTail(pFirst);
pFirst->Release();
}

CFODrawShape *pSecond = FindShapeWithValue(strStart);
if(pSecond == NULL)
{
pSecond = GetNode(ptStart, strStart);
GetCurrentModel()->GetShapes()->AddTail(pSecond);
pSecond->Release();
}

FOP_LINK_DATA linkdata;
linkdata.startid = strName;
linkdata.endid = strStart;
m_arLinks.Add(linkdata);

ptStart += CPoint(nOffset, nOffset);

xmlNode.GetNextNode();
}

for(int x = 0; x < m_arLinks.GetSize(); x++)
{
FOP_LINK_DATA linkdata = m_arLinks.GetAt(x);
CString nStartId = linkdata.startid;
CString nEndId = linkdata.endid;

CFODrawPortsShape *pStart = (CFODrawPortsShape *)FindShapeWithValue(nStartId);
CFODrawPortsShape *pEnd = (CFODrawPortsShape *)FindShapeWithValue(nEndId);

if(pStart != NULL && pEnd != NULL)
{
AddLinkShapeNoUndo(pStart, pEnd, FO_COMP_LINK, 1);
}
}

// ptCenter = pFirst->GetCenterPoint();

// SelectNewShape(pFirst);


}

SetLogCenter(500,200);

AfxGetApp()->EndWaitCursor();
}

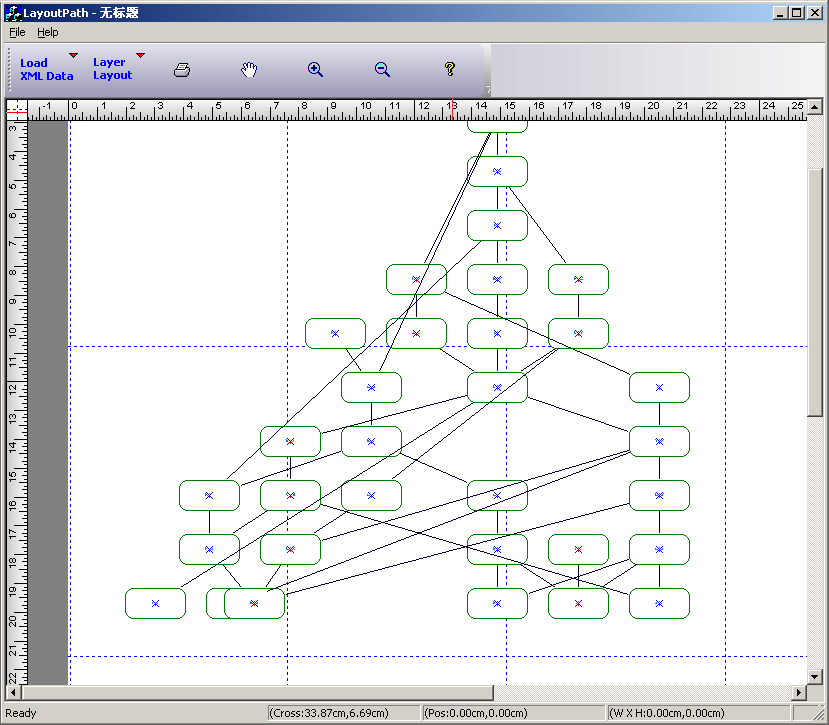

void CLayoutPathView::OnFoRemovePage()
{
// TODO: Add your command handler code here
CFOPLayeredLayout layout1;
layout1.Initialize(GetCurrentModel(), *GetCurrentModel()->GetFormObjects());
layout1.DoLayoutNew();

CFODrawShape *pShow = NULL;
BOOL bFirst = TRUE;
int nCount = GetCurrentModel()->GetShapes()->GetCount();
for(int x2 = 0; x2 < nCount; x2++)
{
CFODrawShape *pShape = (CFODrawShape *)GetCurrentModel()->GetShapes()->GetObject(x2);
pShape->OffsetAllPoints(40,100);
if(bFirst)
{
pShow = pShape;
bFirst = FALSE;
}
}

if(pShow)
{
SetLogCenter(pShow->GetSnapRect().CenterPoint().x, pShow->GetSnapRect().CenterPoint().y);
}
}
