Steps:

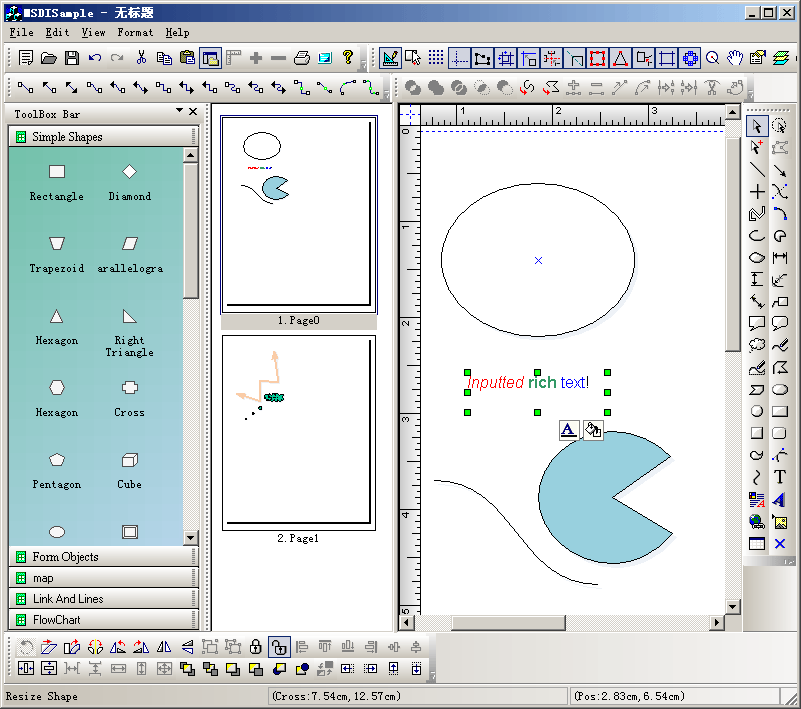

1. Create a new class CContentView that uses CFOContentView as base class, this is the left side page list window.

2. Create a new class CCustomMSampleView that uses CFOMultiPageView as base class.

3. Create a CMyExtDataModel that uses CFOMultiPageModel as base class.

4. Create a new CExtDataManager that uses CFOMultiPageModelManager as base class.

5. Create spliter within main window:

BOOL CMainFrame::OnCreateClient(LPCREATESTRUCT /*lpcs*/,
	CCreateContext* pContext)
{
	if (!m_wndSplitterLR.CreateStatic(this, 1, 2))
	{
		TRACE0("Failed to CreateStaticSplitter\n");
		return FALSE;
	}

	if (!m_wndSplitterLR.CreateView(0, 0, RUNTIME_CLASS(CContentView), CSize(0, 0), pContext))
	{
		TRACE0("Failed to create first pane\n");
		return FALSE;
	}

	if (!m_wndSplitterLR.CreateView(0, 1, RUNTIME_CLASS(CMSDISampleView), CSize(0, 0), pContext))
	{
		TRACE0("Failed to create first pane\n");
		return FALSE;
	}

	m_wndSplitterLR.SetColumnInfo(0, 200, 0);

	return TRUE;
}

6. Create custom shape with class CMyCorsssLineShape

7. Create custom property value with class CMyCustomProperties

8. Attach property value with custom shape, call:

CMyCustomProperties propLine;
AddNewProperty(propLine);
