Steps:

1. Create line shape:

void CUserDefineView::OnCreateLine()
{
	// TODO: Add your command handler code here
	CArray<CPoint,CPoint> ptArray;
	ptArray.Add(CPoint(30,40));
	ptArray.Add(CPoint(120,90));
	ptArray.Add(CPoint(200,120));

	CFOLineShape *pReturn = new CFOLineShape;
	pReturn->AddRef();
	pReturn->Create(&ptArray);
	CString strCaption = GetCurrentModel()->GetUniqueCaption(pReturn->GetType());
	CString strName = GetCurrentModel()->GetUniqueName(pReturn->GetType());
	pReturn->SetObjectCaption(strCaption);
	pReturn->SetObjectName(strName);
	GetCurrentModel()->InsertShape(pReturn);
	pReturn->Release();
	pReturn = NULL;
}

2. Create rectangle:

void CUserDefineView::OnCreateRect()
{
	// TODO: Add your command handler code here
	CRect rcTest;
	rcTest = CRect(100,100,200,250);
	CFORectShape *pReturn = new CFORectShape;
	pReturn->AddRef();
	pReturn->Create(rcTest,"");
	CString strCaption = GetCurrentModel()->GetUniqueCaption(pReturn->GetType());
	CString strName = GetCurrentModel()->GetUniqueName(pReturn->GetType());
	pReturn->SetObjectCaption(strCaption);
	pReturn->SetObjectName(strName);
	pReturn->RemoveAllPorts();
	pReturn->CreateDefaultPort(0.5,0.5);
	GetCurrentModel()->InsertShape(pReturn);
	pReturn->Release();
	pReturn = NULL;
}

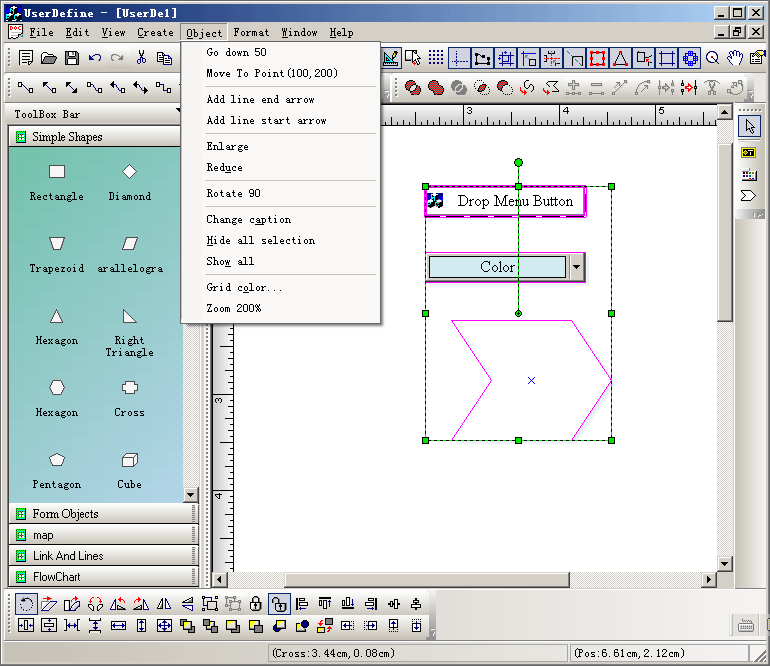

3. Moving shape:

void CUserDefineView::OnObjectMoveY50()
{
	// TODO: Add your command handler code here
	if(m_listSelectComp.GetCount() >0)
	{
		int nMove = 50;
		DoMoveAction(&m_listSelectComp, 0, nMove);
	}
}

void CUserDefineView::OnObjectMoveTo()
{
	// TODO: Add your command handler code here
	if(m_listSelectComp.GetCount() > 0)
	{
		CRect rcPos = GetCompsMaxRect(&m_listSelectComp);
		CPoint ptMove;
		ptMove = CPoint(100 - rcPos.TopLeft().x,200 - rcPos.TopLeft().y);
		DoMoveAction(&m_listSelectComp, ptMove.x, ptMove.y);
	}
}

4. Rotate shape:

void CUserDefineView::OnObjectRotate90()
{
	// TODO: Add your command handler code here
	int nCount = 0;
	CFODrawShapeList lstRotate;
    CFODrawShape* pShape;
	POSITION pos = m_listSelectComp.GetHeadPosition();
	while(pos != NULL)
	{
		pShape = m_listSelectComp.GetNext(pos);
		if(pShape != NULL && !pShape->IsLock())
		{
			if(pShape->IsPolyObject() &&
				(!pShape->IsKindOf(RUNTIME_CLASS(CFOLinkShape))) &&
				(!pShape->IsKindOf(RUNTIME_CLASS(CFOStaticShape))))
			{
				lstRotate.AddTail(pShape);
				nCount ++;
			}
		}
	}

	if(nCount > 0)
	{
		DoRotateShapesAction(&lstRotate,900);
	}
}
